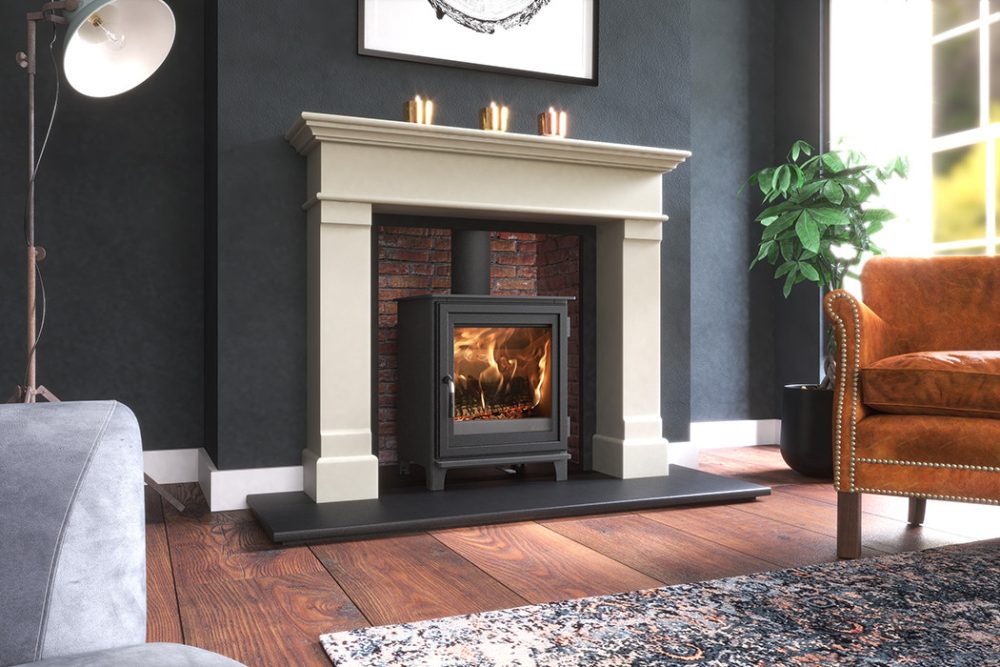

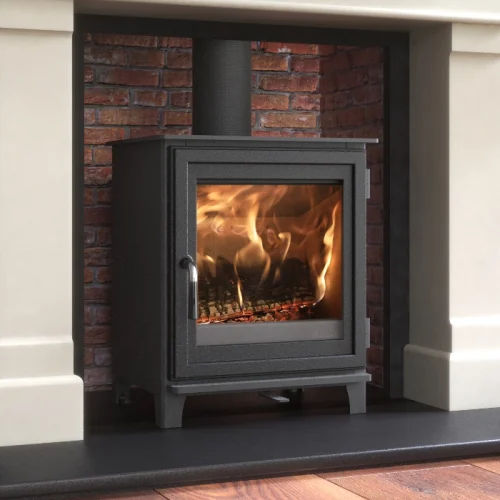

Dik Geurts Soren 5
Energy efficiency class A+
Model Freestanding
Fire view Front
Shape Horizontal
Fuel Wood
Combustion system Combustion air from outside, Combustion air from living area
Suitable for passive houses
Glass window Standard glass
Door type Hinged door
Control Manual control
S-Thermatik NEO
Colours Dark anthracite
Material Steel
Interior Vermiculite natural
Output net min. (kW) 4,0
Output net max. (kW) 7,0
Nominal heat output 5
Max. log length (cm) 35
Efficiency (%) 82
CO emission (%-13% O2) 0.09
Particulate Matter (mg/Nm3-13% O2) 8
OGC/CxHy (mg/Nm3-13% O2) 62
NOx emission (mg/Nm3-13% O2) 78
Built-in depth (mm) 378
Fire view width (mm) 319
Fire view height (mm) 327
Weight (kg) 85
Flue Top, Rear
Flue Ø (mm) 125/130
External air connection Rear
Convection connection
230V necessary
