Dik Geurts Instyle Corner High

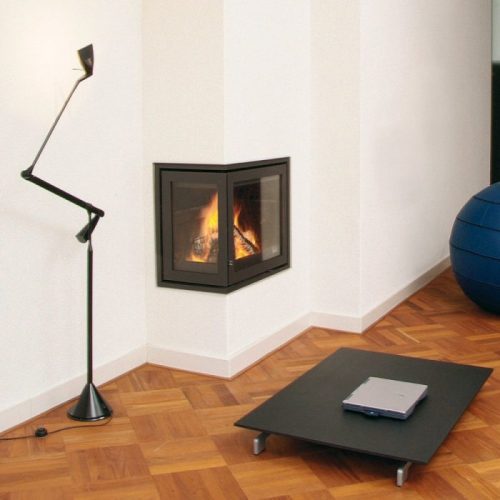

The Instyle Corner HighEA is a 2-sided corner wood stove that can be built into a pre-fabricated chimneybreast or used as a part of a room dividing wall. It has a heat output range from 7 – 11 kW and an impressive energy efficiency rating of 83%.
• Energy efficiency class A+
• Model Insert
• Fire view 2-sided
• Shape Horizontal
• Fuel Wood
• Combustion system Open combustion
• Glass window Infrared glass
• Door type Hinged door
• Control Manual control
• Colours Dark anthracite
• Material Steel
• Interior Vermiculite natural
• Output net min. (kW) 4.0
• Output net max. (kW) 9.0
• Max. log length (cm) 33
• Efficiency (%) 83.0
• Consumption wood max (kg/h) 2.1
• CO emission (%-13% O2) 0.065
• NOx emission (mg/Nm3-13% O2) 60
• Built-in depth (mm) 350
• Fire view width (mm) 525
• Fire view height (mm) 370
