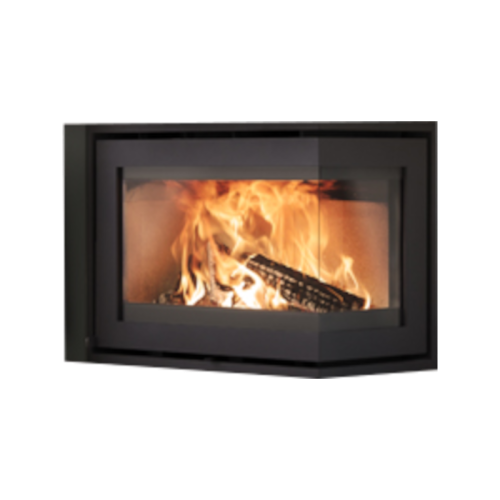

Dik Geurts Instyle Corner Slim
Energy efficiency class A
Product fiche Click for PDF-file
Model Built-in, Insert
Fire view 2-sided
Shape Horizontal
Fuel Wood
Combustion system Combustion air from outside, Combustion air from living area
Suitable for passive houses
Glass window Standard glass
Door type Hinged door
Control Manual control
S-Thermatik NEO
Colours Dark anthracite
Material Steel
Interior Vermiculite natural
Output net min. (kW) 4.0
Output net max. (kW) 10.0
Nominal heat output 6.7
Max. log length (cm) 50
Efficiency (%) 75.2
CO emission (%-13% O2) 0.1
Particulate Matter (mg/Nm3-13% O2) 28
OGC/CxHy (mg/Nm3-13% O2) 95
NOx emission (mg/Nm3-13% O2) 106
Built-in depth (mm) 350
Fire view width (mm) 565
Fire view height (mm) 315
Weight (kg) 110
Flue Top
Flue Ø (mm) 150
External air connection Rear, Base
Convection connection
230V necessary
