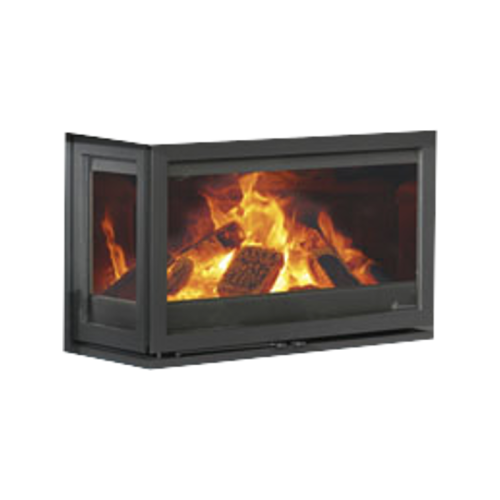

Dik Geurts Instyle Triple Low
The Instyle Triple LowEA is a 3-sided panoramic wood stove that can be built into a pre-fabricated chimneybreast or a room dividing feature wall. At only 495 mm high, it is a flexible and versatile woodburning fire. As well as the all-round vision of its flame picture, the side panels are made of infra-red heat reflective glass.
Energy efficiency class A+
• Model Insert
• Fire view 3-sided
• Shape Horizontal
• Fuel Wood
• Combustion system Open combustion
• Glass window Infrared glass
• Door type Hinged door
• Control Manual control
• Colours Dark anthracite
• Material Steel
• Interior Vermiculite natural
• Output net min. (kW) 4.0
• Output net max. (kW) 9.0
• Max. log length (cm) 25
• Efficiency (%) 88.0
• Consumption wood max (kg/h) 2.1
• CO emission (%-13% O2) 0.065
• NOx emission (mg/Nm3-13% O2) 60
• Built-in depth (mm) 380
• Fire view width (mm) 227
• Fire view height (mm) 562
• Weight (kg) 102
• Flue top (mm) 150
