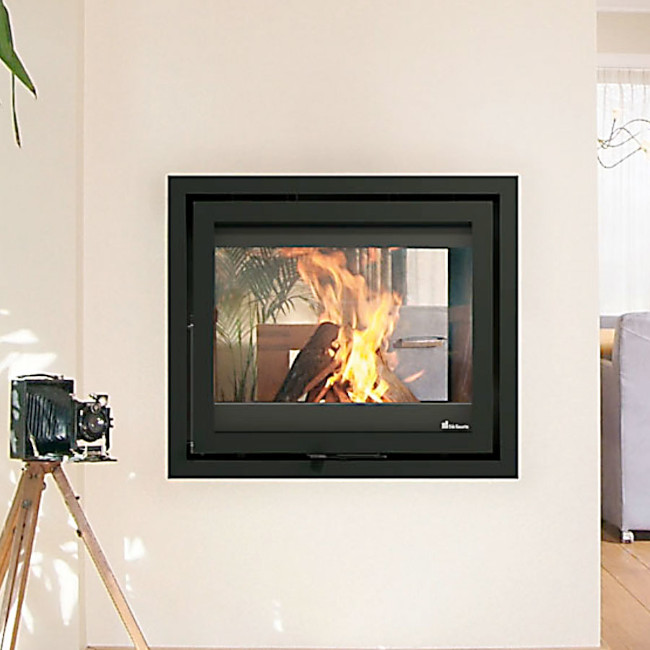

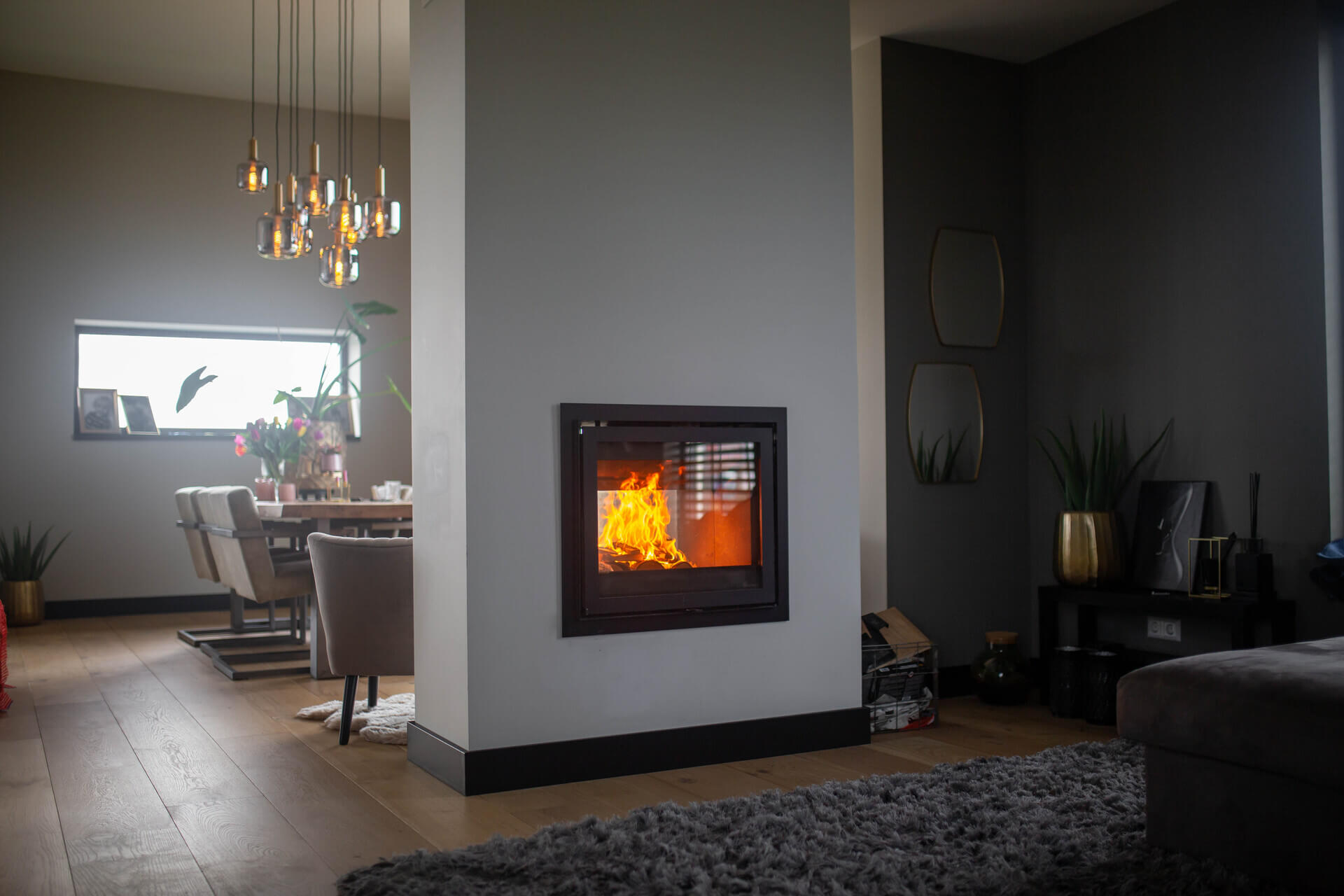

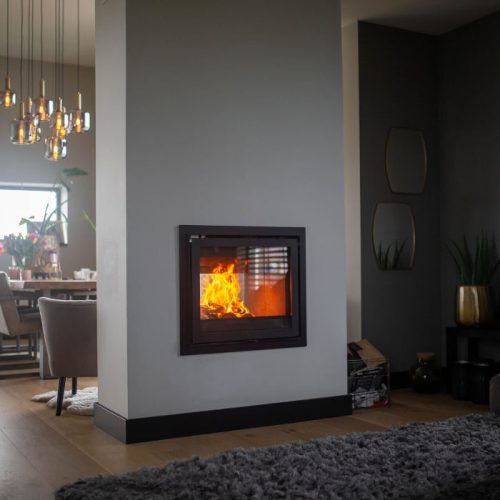

Dik Geurts Instyle Tunnel
Specifications
Brand Dik Geurts
Series Instyle/Prostyle
Category Wood fires
EcoDesign Ready
Energy efficiency class A+
Model Built-in, Insert
Fire view Tunnel
Shape Horizontal
Fuel Wood
Combustion system Combustion air from outside, Combustion air from living area
Suitable for passive houses
Glass window Standard glass
Door type Hinged door
Control Manual control
S-Thermatik NEO
Colours Dark anthracite
Material Steel
Interior Vermiculite natural
Output net min. (kW) 9.0
Output net max. (kW) 12.0
Max. log length (cm) 52
Efficiency (%) 83.0
CO emission (%-13% O2) 0.079
NOx emission (mg/Nm3-13% O2) 28
Built-in depth (mm) 550
Fire view width (mm) 560
Fire view height (mm) 457
Weight (kg) 140
Flue Top
Flue Ø (mm) 180
External air connection Base
Convection connection Yes
