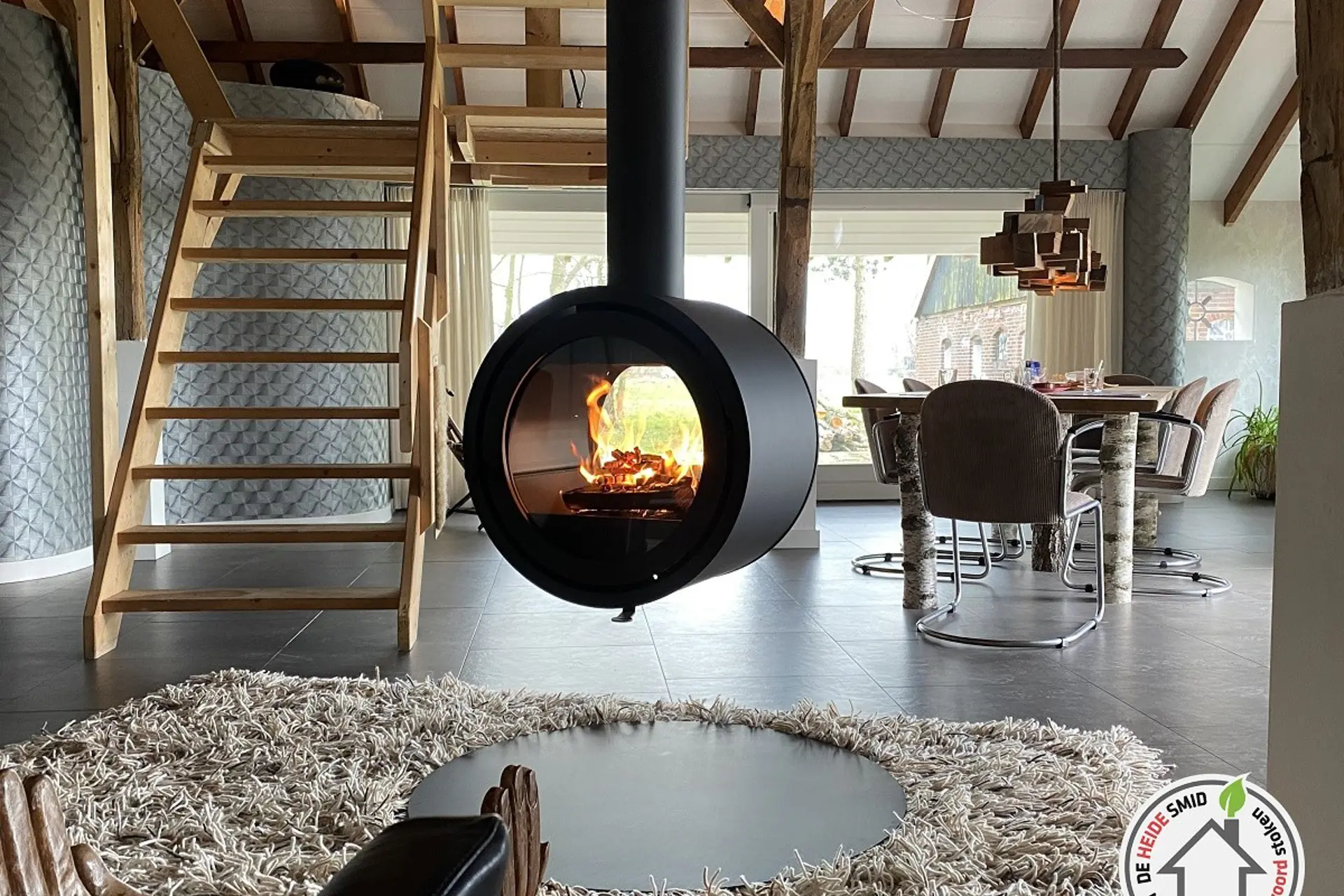

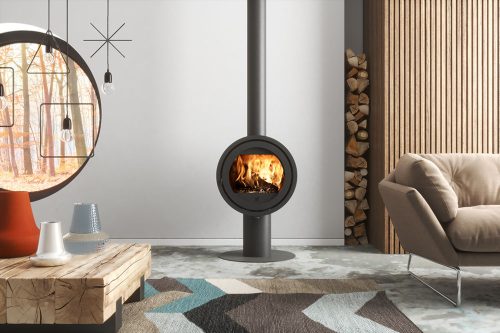

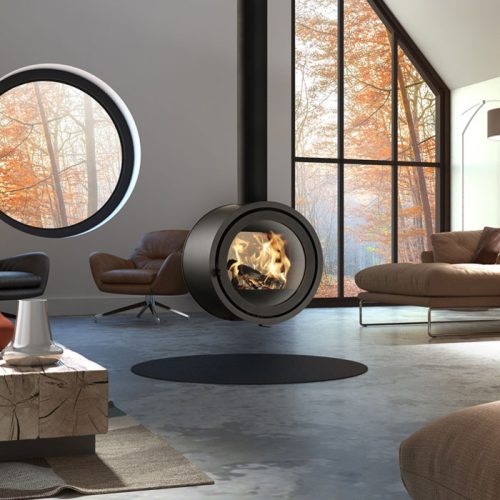

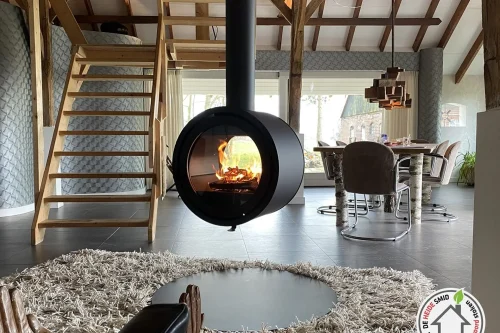

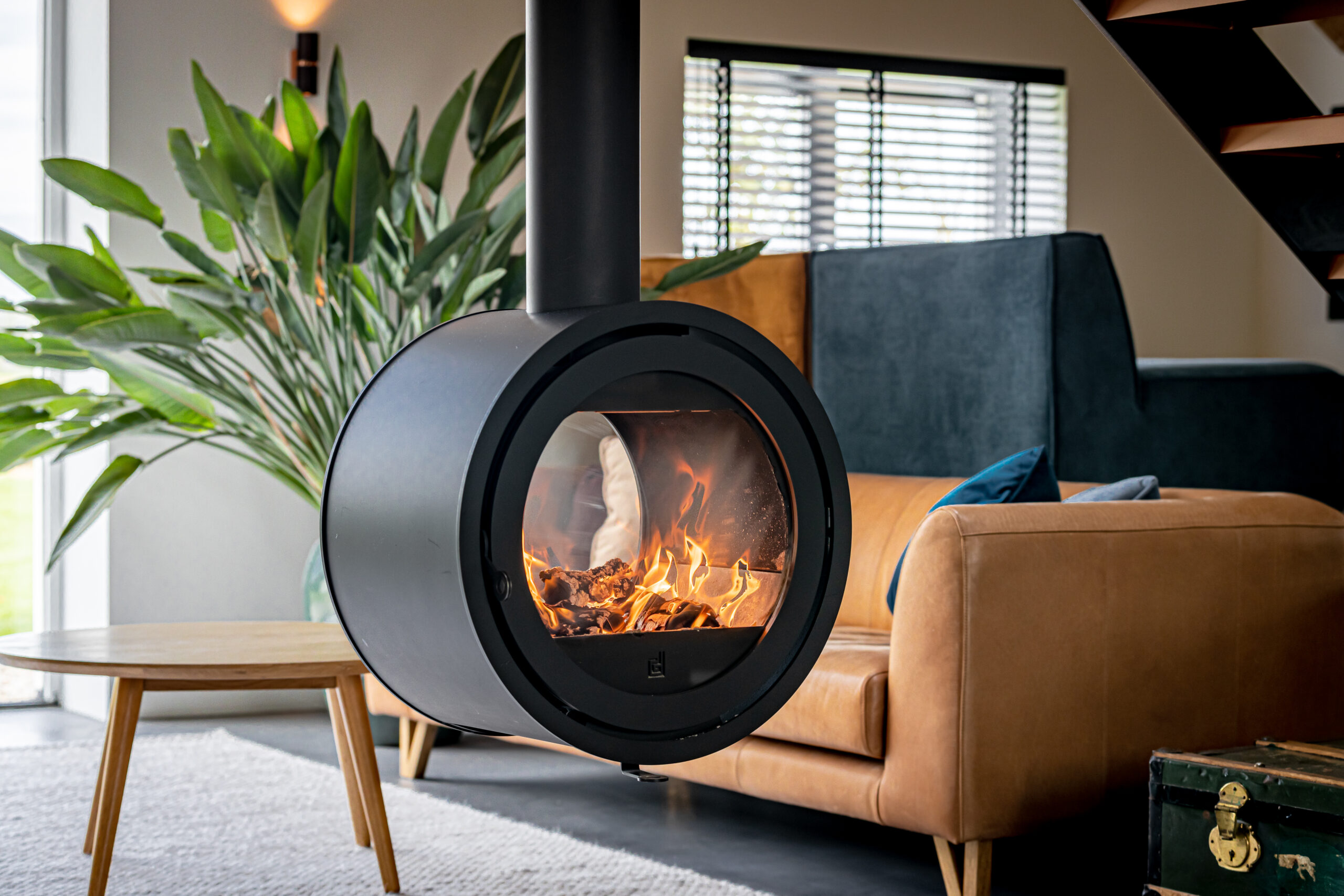

Dik Geurts Odin Tunnel Base

Energy efficiency class A
Product fiche Click for PDF-file
Model Freestanding
Fire view Tunnel
Shape Round
Fuel Wood
Combustion system Combustion air from living area
Suitable for passive houses
Glass window Standard glass
Door type Hinged door
Control Manual control
S-Thermatik NEO
Colours Dark anthracite
Material Steel

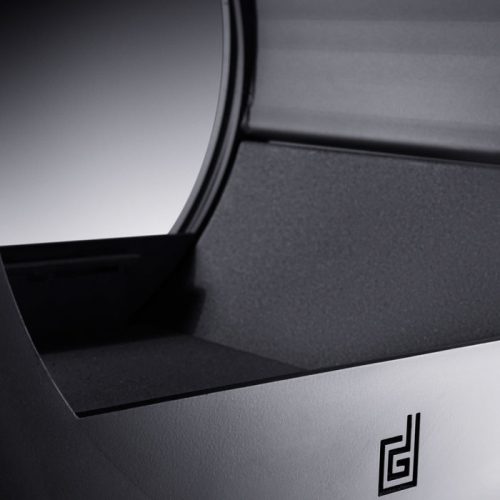

Interior Vermiculite dark anthracite
Output net min. (kW) 6,0
Output net max. (kW) 10,0
Nominal heat output 8.3
Max. log length (cm) 33
Efficiency (%) 75
CO emission (%-13% O2) 0,07
Particulate Matter (mg/Nm3-13% O2) 40
OGC/CxHy (mg/Nm3-13% O2) 77
NOx emission (mg/Nm3-13% O2) 127
Built-in depth (mm) 400
Fire view width (mm) 424
Fire view height (mm) 424
Weight (kg) 130
Flue Top
Flue Ø (mm) 150
External air connection Base
Convection connection
230V necessary
